Infrastructure Inspections

Record Drawing Submittals

Record Drawing submittals must be uploaded to GeoCivix for electronic review by the Infrastructure Inspections Manager, Infrastructure Inspector, Utility Specialists, and GIS staff. Upload the Record Drawing submittal as a New Project in GeoCivix. Include the following information for review on the first upload:

  • Record Drawings (Individual PDF Files)
  • Engineer’s Water Certification of Completion, if applicable
  • Engineer’s Sewer Certification of Completion, if applicable
  • Signed/Sealed Record Drawing Checklist (PDF)
  • After the Record Drawings have been reviewed, approved and digitally signed by Infrastructure Inspector and Manager an email will be sent from GeoCivix requesting the Engineer to upload the AutoCAD drawing for review.

Please allow three days for review of the Record Drawings by the Infrastructure Inspector and Manager and a three day review of the AutoCAD drawing by the GIS Technician.

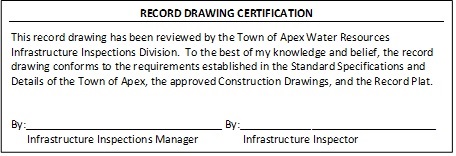

The Record Drawing Checklist (PDF) has been revised to reflect this new process. Please apply the Record Drawing Certification (JPEG) (PDF) to each plan sheet before uploading the plans to GeoCivix.

Please see the Electronic Record Drawing Submittal Process (PDF) for more information and directions for GeoCivix.

Pre-Construction Meeting

All development projects must have a Pre-Construction Meeting with the Town prior to starting any site work. Please email Neisha Maynard or call at (919) 372-7467 to schedule a meeting.

Please review the Pre-Construction Meeting Checklist and Attachments. The owner or owner representative must sign the Checklist on Page 6.

Start and End of Warranty Inspections:  Sanitary Sewer, Storm Drain, Hydrant and Valve, and Street Sign Inspections

Please submit the Start of Warranty Inspection Request form for Sanitary Sewer, Storm Drain, Hydrant and Valve, and Sign inspections.  CCTV inspections for sanitary sewer and storm drain must be completed by a third party contractor.  These inspections must be completed and passed prior to Certificate of Occupancy and/or plat approval.

When the final lift of asphalt is completed submit the End of Warranty Inspection Request form for Sanitary Sewer, Hydrant and Valve, and Sign inspections.  Storm Drain is not inspected at end of warranty.  End of warranty inspections are completed by Water Resources and Public Works and Transportation staff.

All 3rd Party CCTV inspection videos must be provided on a USB drive and deposited in the drop box located near the main entrance of the Water Resources Administration Building, 105-B Upchurch Street, Apex, NC.  The following files must be included on the USB drive:  Video files for sanitary sewer main lines and services and storm sewer (if applicable); Sanitary Sewer Reports; and the 3rd Party CCTV Inspection Report Form.

Please review the Utility and Roadway Inspection Scheduling Requirements for Contractors (PDF) document to learn more about requirements for scheduling and testing Infrastructure Inspections.

Infrastructure Inspection Fees

Please reference the Town’s Fee Schedule (PDF) for a full listing of all Town of Apex Fees. A summary of the Construction Plan Submittal, Infrastructure Inspections, and Bond Administration Fees can be found on the Development Services Fees & Bonding webpage.
